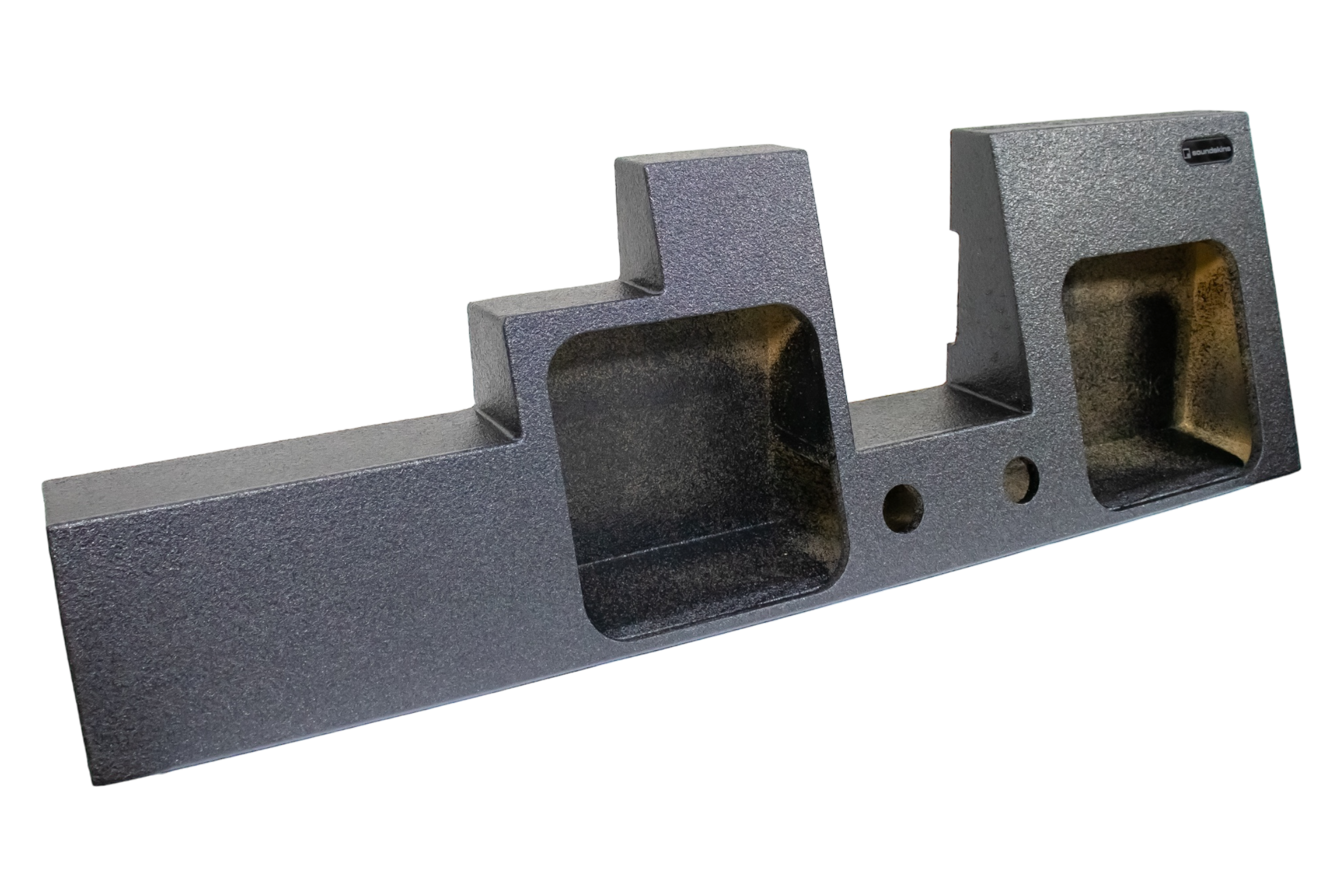

SoundSkins Global Dual 12” Sealed and Ported Ford Enclosures fit Super Duties 2000-2016 behind the back seat with motor window cut out.
- Available in Kicker specific options
- Each SoundSkins box is coated with a durable bed liner polymer spray to enhance its longevity
- These USA-made enclosures are constructed from high-grade, full 3/4" MDF, ensuring robustness and exceptional sound quality
- SSK-P212PFB2C Dimensions: Width: 54", Front Height: 17.75", Rear Height: 16.75", Height: 16.75", Bottom Depth: 3", Top Depth: 3", Depth: 7.75", Mounting Depth: 4.5", Cutout Diameter: 11.125", Weight: 37.75 LBS, Air Space per Cubic Foot: 0.7, Tuning Frequency: 38Hz SSK-P212PFB2CK Dimensions: Width: 54", Front Height: 17.75", Rear Height: 16.75", Height: 16.75", Bottom Depth: 3", Top Depth: 3", Depth: 7.75", Mounting Depth: 4.5", Cutout Diameter: 11.125", Weight: 31 LBS, Air Space per Cubic Foot: 1, Tuning Frequency: 38Hz Upgrade Option - Steve Meade Designs - SMD TCR-1 Speaker Terminal Cup Specs: - Supports up to 2000 Watts, significantly higher than the standard 500 Watts
- - Designed to endure demanding conditions without breaking or leaking
- - Constructed from lightweight, high-strength materials for durability
- - Includes stainless steel hardware to resist rust and corrosion
- - Features a 5/16" bolt terminal for secure connections
- - Cut-out diameter: 2.75 inches
- - Flange diameter: 3.75 inches
Specifications
| Specification |
P212PF2CB |
P212PF2CBK |
| Width |
54" |
54" |
| Height |
16.75" |
16.75" |
| Depth |
7.75" |
7.75" |
| Mounting Depth |
4.25" |
4.25" |
| Cutout Diameter |
11.125" |
11.125" |
| Weight |
37.75 LBS |
37.75 LBS |
| Air Space |
1.05 ft³ |
1.05 ft³ |
| Tuning Frequency |
40Hz |
44HZ |
Fitment Notes
Mounts behind the rear seat. Remove the factory plastic tray and rear-wall carpet/paneling. The factory jack kit must be removed, and the rear power-window motor must be removed during installation where applicable. Subwoofers with wide baskets or magnets may not fit. Certain dual enclosure versions do not fit trucks equipped with the rear power window; confirm the exact design.
Optional Upgrade: SMD TCR-1 Terminal Cup
- Supports up to 2000 Watts, significantly higher than the standard 500 Watts.
- Designed to endure demanding conditions without breaking or leaking.
- Constructed from lightweight, high-strength materials for durability.
- Includes stainless steel hardware to resist rust and corrosion.
- Features a 5/16" bolt terminal for secure connections.
- Cut-out diameter: 2.75 inches.
- Flange diameter: 3.75 inches.
USA-made and finished with a durable bed liner polymer spray for long-term durability.
